IO-CMP1 Camera Package 1 (Basic Road and Driver)

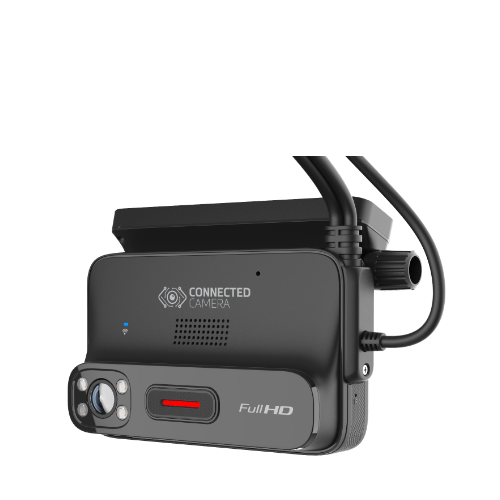

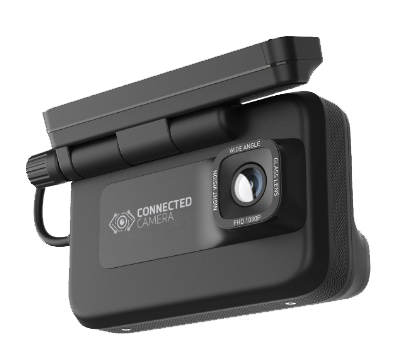

The IO-CMP1 camera package is the basic setup for 2-3 camera views (forward facing, driver facing and optional rear facing). This package includes the K220 camera, IO-2152 OBD interface, and serial cable to connect the camera to live vehicle data from the on-board computer networks. The installed SIM card transmits recorded data to the cloud portal for retrieval and playback.
Included in the $11/month subscription is our exclusive ADAS, driver behavior and event triggering, which is fully customizable in the management portal. Map data is supplied by Magellan™ providing real time alerts for speeding, school zones, railroad crossings, and speed cameras.
KEY SPECIFICATIONS
- 4G LTE modem for cloud portal data transmission
- Standard 2 camera-forward & driver facing
- Optional rear cameras U10, A60 & I25 (sold separately)
- Optional remote driver panic button (sold separately)
- ADAS & DMS event triggering
- Magellan map data for real-time driver alerts
- Cloud-based storage and management portal
- Vehicle OBD connection via RS-232 serial with included IO-2152
$266.40
Part #: IO-CMP1
Features
Features
- 4G LTE modem connected whenever camera is powered up
- Android 10 Operating System
- 2GB RAM, 16GB internal storage
- Micro SD slot; storage up to 1TB (128GB SD card included)
- WiFi, Bluetooth & RS-232 serial connectivity
- Built-in GPS
- 3 axis accelerometer
- Full HD 1920 x 1080 resolution
- Built-in microphone and speaker
- Powered via vehicle OBD port
- Emergency Record Button
- Optional in-cab or external-mount rear 3rd cameras (U10, A60, I25)
- Optional rear camera extension up to 15 meters
- 5F superCAP battery for up to 12 second record after power interruption
- 4.6W power draw during full record; 90mW during park mode
- 30 second cold boot; 2 second warm boot from Park Mode
- Park Mode includes impact detection
- Temperature range: -20 to +70 C
- Dimensions: 112x70x48mm
- Mass: 205g
